VF15 series

SKU: VF15 Category:

Enquire about this product

Product Enquiry Form

Description

Features and Strengths:

Examples of use:

Build an Order #



1. Suction Cup

SymbolDescription
VF15-NFlat suction cup, 15 mm, Nitrile (NBR)
VF15-SFlat suction cup, 15 mm, Silicone
VF15-WSFlat suction cup, 15 mm, White silicone
VF15-WS(FDA)Flat suction cup, 15 mm, White silicone (FDA)
VF15-HSFlat suction cup, 15 mm, High-temp silicone
VF15-CSFlat suction cup, 15 mm, Conductive silicone
VF15-UFlat suction cup, 15 mm, Urethane
VF15-AFlat suction cup, 15 mm, Mark free

2. Fitting

SymbolDescription
BlankNo fitting
M5MFitting, M5 male
M5M-EVEfficiency valve fitting, M5 male

Specifications

1. Recommended Lifting Maximum Force

DiameterVolumeLifting Force (↑), KgLife Force (→), Kg
(mm)(cm³)-20 kPa-60 kPa-90 kPa-20 kPa-60 kPa-90 kPa
16.50.0370.350.861.120.350.660.76

2. Weight

Part NumberDescriptionWeight (g)
VF15-NFlat suction cup, 15 mm, Nitrile (NBR)0.73
VF15-SFlat suction cup, 15 mm, Silicone0.65
VF15-WSFlat suction cup, 15 mm, White silicone0.64
VF15-WS(FDA)Flat suction cup, 15 mm, White silicone (FDA)0.64
VF15-HSFlat suction cup, 15 mm, High-temp silicone0.66
VF15-CSFlat suction cup, 15 mm, Conductive silicone0.64
VF15-UFlat suction cup, 15 mm, Urethane0.70
VF15-AFlat suction cup, 15 mm, Mark free0.84
350-000-3102Fitting, M5 male2.52
350-010-3102Efficiency valve fitting, M5 male2.63

3. Material Specifications

MaterialHardness Shore (°)ColorTemperature (℃)
NBR60Black-20 ~ 110
Silicone55Red-70 ~ 200
White Silicone55Translucent White-70 ~ 200
White Silicone (FDA)55Translucent White-70 ~ 200
High Temp. Silicone50Blue-70 ~ 280
Conductive Material70Smoky Black-45 ~ 90
Urethane60Dark Green0 ~ 100
Mark Free75Black-10 ~ 100

4. Material Resistance

DescriptionWear ResistanceOilWeather/OzoneAlcoholAcid
NBRExcellentExcellentFairGoodFair
SiliconeGoodPoorExcellentGoodPoor
White SiliconeGoodPoorExcellentGoodPoor
High Temp. SiliconeGoodPoorExcellentGoodPoor
Conductive SiliconeGoodPoorExcellentGoodPoor
UrethaneExcellentExcellentExcellentFairPoor
Mark FreeGoodExcellentExcellentGoodExcellent

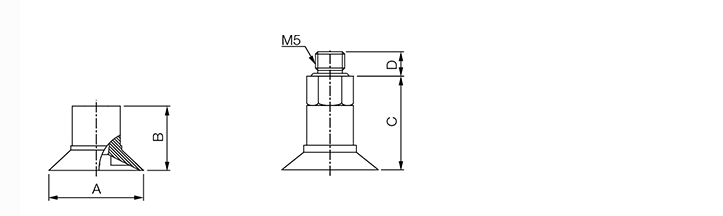

Dimensions

VF15

Rubber Part, M5M

Unit: mm
LegendABCD
Dimension16.511164.2

Order Numbers

Order Numbers

Part NumberDescription
M5 Male Fitting
VF15-N-M5MFlat suction cup, 15 mm, Nitrile (NBR), M5 male
VF15-S-M5MFlat suction cup, 15 mm, Silicone, M5 male
VF15-WS-M5MFlat suction cup, 15 mm, White silicone, M5 male
VF15-WS(FDA)-M5MFlat suction cup, 15 mm, White silicone (FDA), M5 male
VF15-HS-M5MFlat suction cup, 15 mm, High-temp silicone, M5 male
VF15-CS-M5MFlat suction cup, 15 mm, Conductive silicone, M5 male
VF15-U-M5MFlat suction cup, 15 mm, Urethane, M5 male
VF15-A-M5MFlat suction cup, 15 mm, Mark free, M5 male
Efficiency Fitting
VF15-N-M5M-EVFlat suction cup, 15 mm, Nitrile (NBR), M5 male, Efficiency valve
VF15-S-M5M-EVFlat suction cup, 15 mm, Silicone, M5 male, Efficiency valve
VF15-WS-M5M-EVFlat suction cup, 15 mm, White silicone, M5 male, Efficiency valve
VF15-WS(FDA)-M5M-EVFlat suction cup, 15 mm, White silicone (FDA), M5 male, Efficiency valve
VF15-HS-M5M-EVFlat suction cup, 15 mm, High-temp silicone, M5 male, Efficiency valve
VF15-CS-M5M-EVFlat suction cup, 15 mm, Conductive silicone, M5 male, Efficiency valve
VF15-U-M5M-EVFlat suction cup, 15 mm, Urethane, M5 male, Efficiency valve
VF15-A-M5M-EVFlat suction cup, 15 mm, Mark free, M5 male, Efficiency valve
Rubber Part
VF15-NFlat suction cup, 15 mm, Nitrile (NBR)
VF15-SFlat suction cup, 15 mm, Silicone
VF15-WSFlat suction cup, 15 mm, White silicone
VF15-WS(FDA)Flat suction cup, 15 mm, White silicone (FDA)
VF15-HSFlat suction cup, 15 mm, High-temp silicone
VF15-CSFlat suction cup, 15 mm, Conductive silicone
VF15-UFlat suction cup, 15 mm, Urethane
VF15-AFlat suction cup, 15 mm, Mark free
Fitting
350-000-3102Fitting, M5 male
350-010-3102Efficiency valve fitting, M5 male
